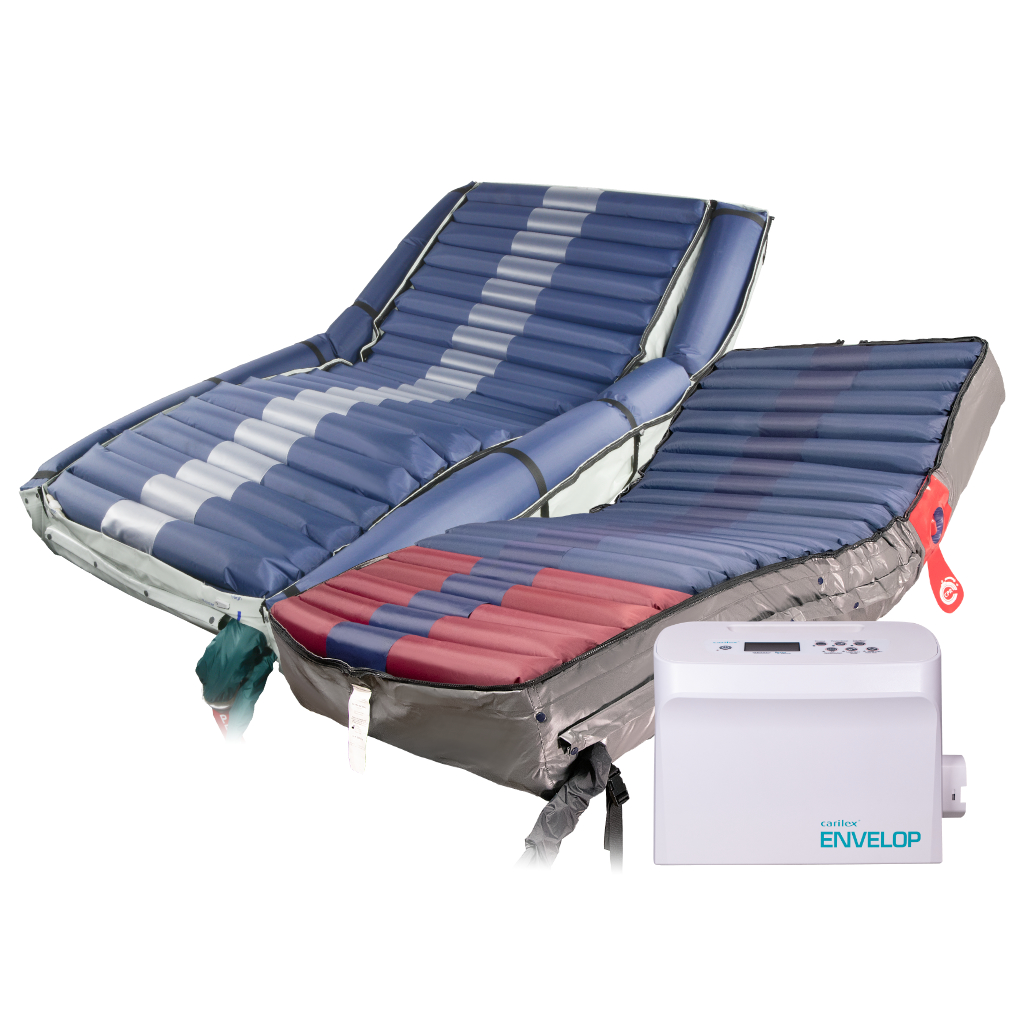

Envelop

Carilex’s Envelop Air alternating mattress system features Self-Monitoring Automatic Air Regulating Technology. It maintains optimal internal pressure for individual patients, supporting up to 1000lbs and providing comprehensive pressure relief.

Carilex Medical USA, Inc.

With over 30 years of experience, Carilex has established itself as a global leader in the wound care industry by developing state-of the-art technology in the prevention and treatment of pressure ulcers.
Toll free:(866) 551-4227 Website: www.carilexmedical.com
Benefits

• Self-monitoring automatic air regulating technology
• Battery backup
• Static mode
• Dynamic mode
• Up-right function
• Max inflation
• User-friendly button design
• Call for services alarm
• Power failure alarm
• Low/high pressure alarm


Indications

The therapeutic support system is indicated for the prevention and/or management of all categories of pressure ulcer. The use of this system allows combined with the regular repositioning, monitoring, and nursing of the patient.

Contraindications

Certain patient conditions are not suitable for using this type of device such as fracture of unstable vertebrae and illness of unstable vertebrae (include spinal cord injury, cervical traction).

Warnings and Precautions

1. Always consult a physician or health professional before using the Envelop System. Any and all applications outside of the conditions specified above are regarded as unapproved. The user and the operator respectively are exclusively liable for any damage resulting from the unapproved use.
2. If existing wounds do not improve or the patient’s condition changes the overall therapy regimen should be reviewed by the consult physicians.
    A. Strangulation by extra-long cables and hoses: To avoid entanglement, keep children clear of hoses.
    B. Choking caused by small parts being inhaled or swallowed: Identify any loose or detached small parts that may be an issue
    C. Potential allergic reactions to accessible materials used in the equipment: Identify any rubber or latex that could be an issue.
    D. Contact Injuries: Check for any skin irritation due to prolonged contact with the equipment.
    E. Protection against strangulation or asphyxiation: Means shall be provided to control the risk of strangulation and asphyxiation of the patient and other to an acceptable level by routing wires or tubing, and using retention devices.
    F. To prevent the effects caused by pets, pests or children.
    G. To avoid the effects of degraded sensor or loosened electrodes, that can degrade performance or cause other problems.

Product features
check_circle 500lb or more capacity
check_circle Accommodates bariatric patient
check_circle Alternating pressure
check_circle Antibacterial cover
check_circle Battery backup for power failure
cancel Computerized control
check_circle Fluid-proof cover
cancel Independent pressure zones
cancel Lateral rotation
check_circle Manages microclimate
cancel Portable
cancel Pulsating
cancel Remote monitoring capabilities
cancel Transit mode
Other features
check_circle Educational Material Available
check_circle Free Samples/Trials Available
cancel Published Clinical Article Available
Therapeutic Modalities

Alternating pressure
Powered pressure redistribution

Warranty

Warranty for 2 years from invoice date

Technical Specifications

Power Unit Model: REF: SR388
Power Input: 100-240Vac 50/60Hz 1.4A or 1.8-1.0A
Power Consumption: Max. 60W

Weight:
Power Unit: 6kg (13lbs)
Mattress Set: 12kg (26lbs), 17kg (37lbs)

Dimension:
Power Unit (W x H x D): 37.5 x 32 x 18.5 cm
Mattress Set: (W x L x H):
Envelop:
36” x 80” x 10” (90 x 200 x 25cm)
48” x 80” x 10” (120 x 200 x 25cm)
Envelop Bariatric:
48” x 83” x 10” (120 x 210 x 25cm)

Operating Conditions:
Temperature: 5°C to 40°C (41°F to 104°F)
Humidity: 15% to 90%

Transportation & Storage Condition:
Temperature: -25°C to 70°C (-13°F to 158°F)
Humidity: 0% to 90%

Product Compliance:
IEC 60601-1
EN 60601-1
BS EN 60601-1
AS/NZS IEC 60601.1
AAM1 ES60601-1
CAN/CSA C22.2 No. 60601-1
IEC 60601-1
EN 60601-1-2

Weight Capacity:
Envelop: 300kg (660lbs)
Envelop Bariatric: 450kg (1000lbs)
