MaxFlow NX

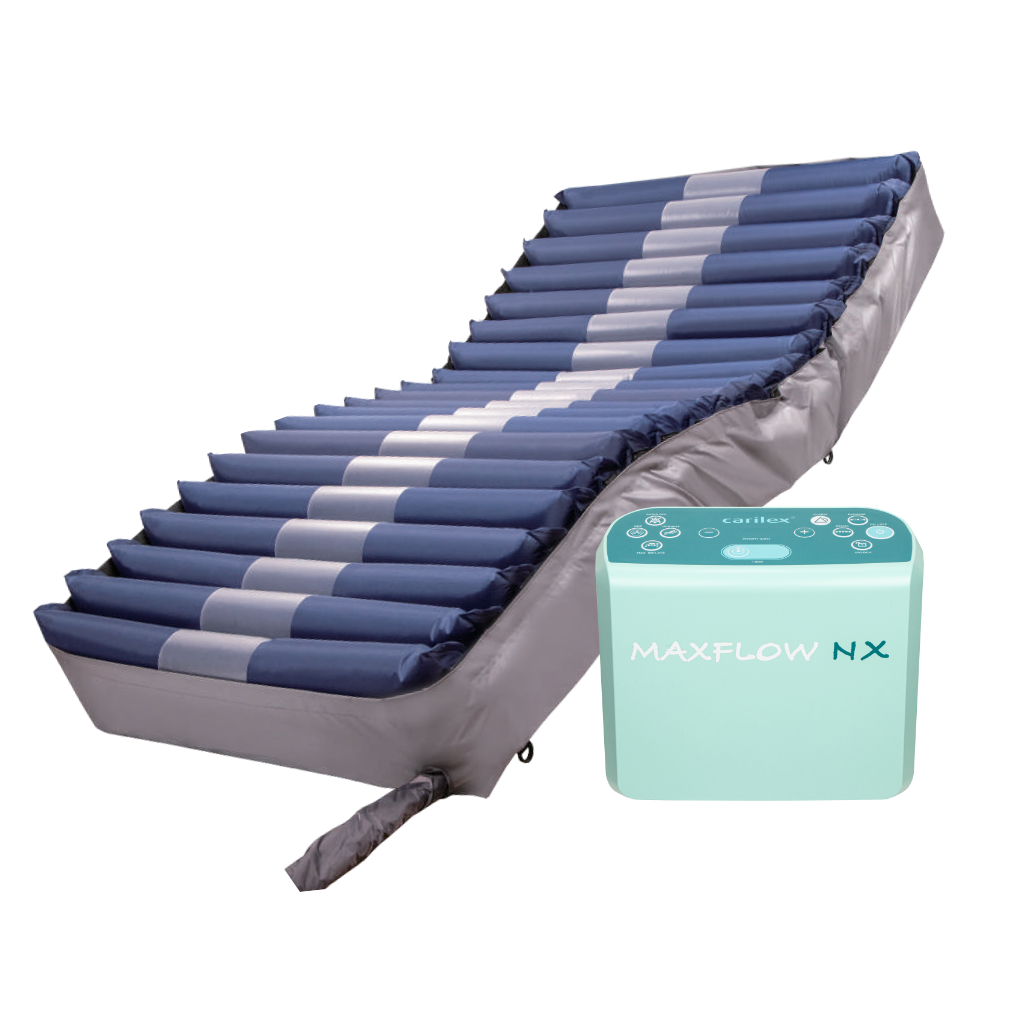

MaxFlow NX is a true low-air-loss alternating pressure air mattress system. It provides a high airflow rate and various size options to support patient weights up to 1000lbs while delivering optimal comfort.

Carilex Medical USA, Inc.

With over 30 years of experience, Carilex has established itself as a global leader in the wound care industry by developing state-of the-art technology in the prevention and treatment of pressure ulcers.
Toll free:(866) 551-4227 Website: www.carilexmedical.com
Benefits

• Intelligent Pressure Sensing Technology (IPS)
• Memory recall
• User-friendly operation
• Low pressure alarm
• Power failure alarm
• Call for service alarm
• Max inflation
• Deep breathing exercise
• Dynamic mode
• Static mode

Indications

The therapeutic support system is indicated for the prevention and/or management of all categories of pressure ulcer. The use of this system allows combined with the regular repositioning, monitoring, and nursing of the patient.

Contraindications

Certain patient conditions are not suitable for using this type of device such as fracture of unstable vertebrae and illness of unstable vertebrae (include spinal cord injury, cervical traction).

Warnings and Precautions

1. Always consult a physician or health professional before using the MaxFlow NX system. Any and all applications outside of the conditions specified above are regarded as unapproved. The user and the operator respectively are exclusively liable for any damage resulting from the unapproved use.
2. If existing wounds do not improve or the patient’s condition changes the overall therapy regimen should be reviewed by the consult physicians.
    A. Strangulation by extra-long cables and hoses: To avoid entanglement, keep children clear of hoses.
    B. Choking caused by small parts being inhaled or swallowed: Identify any loose or detached small parts that may be an issue
    C. Potential allergic reactions to accessible materials used in the equipment: Identify any rubber or latex that could be an issue.
    D. Contact Injuries: Check for any skin irritation due to prolonged contact with the equipment.
    E. Protection against strangulation or asphyxiation: Means shall be provided to control the risk of strangulation and asphyxiation of the patient and other to an acceptable level by routing wires or tubing, and using retention devices.
    F. To prevent the effects caused by pets, pests or children.
    G. To avoid the effects of degraded sensor or loosened electrodes, that can degrade performance or cause other problems

Product features
check_circle 500lb or more capacity
check_circle Accommodates bariatric patient
check_circle Alternating pressure
check_circle Antibacterial cover
cancel Battery backup for power failure
cancel Computerized control
check_circle Fluid-proof cover
cancel Independent pressure zones
cancel Lateral rotation
check_circle Manages microclimate
cancel Portable
cancel Pulsating
cancel Remote monitoring capabilities
cancel Transit mode
Other features
check_circle Educational Material Available
check_circle Free Samples/Trials Available
cancel Published Clinical Article Available
Therapeutic Modalities

Alternating pressure
Low air loss
Powered pressure redistribution

Warranty

Warranty for 2 years from invoice date

Technical Specifications

Power Unit Model: REF: SR376
Power Input: 120Vac 60Hz 5A
Power Consumption: Max. 400W

Weight:
Power Unit: 5.5kg (12lbs)
Mattress Set: 11kg (24lbs), 12kg (26lbs), 14kg (31lbs), 16kg(35lbs)

Dimension:
Power Unit (W x H x D): 35.4 x 31.2 x 17.2 cm

Mattress Set: (W x L x H):
36” x 80” x 10” (90 x 200 x 25cm)
36” x 84” x 10” (90 x 210 x 25cm)
42” x 80” x 10” (107 x 200 x 25cm)
42” x 84” x 10” (107 x 210 x 25cm)
48” x 80” x 10” (120 x 200 x 25cm)
48” x 84” x 10” (120 x 210 x 25cm)
54” x 80” x 10” (135 x 200 x 25cm)
54” x 84” x 10” (135 x 210 x 25cm)

Operating Conditions:
Temperature: 5°C to 40°C (41°F to 104°F)
Humidity: 15% to 90%

Transportation & Storage Condition:
Temperature: -25°C to 70°C (-13°F to 158°F)
Humidity: 0% to 90%

Product Compliance:
ANSI/AAMI ES60601-1
IEC/EN 60601-1
IEC/EN 60601-1-2
IEC/EN 60601-1-8

Weight Capacity: 450kg (1000lbs)
