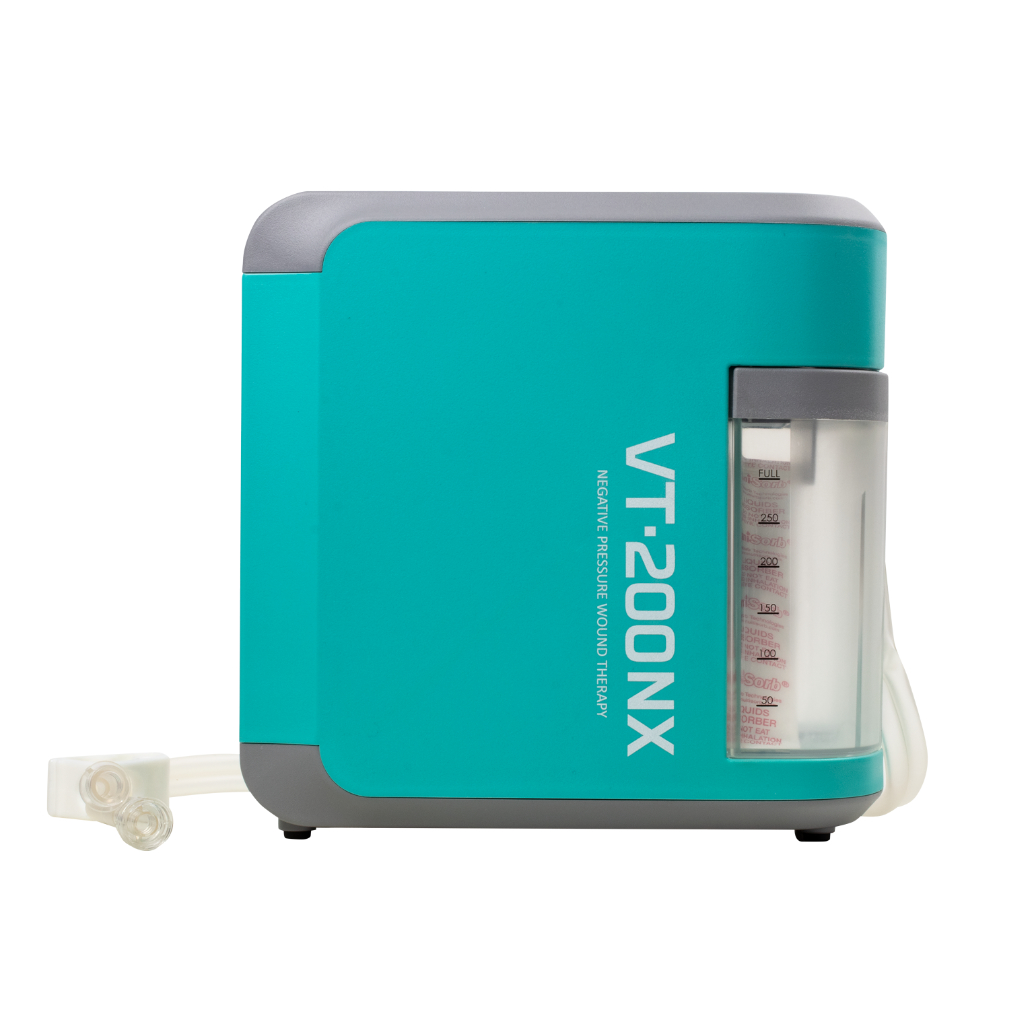

VT • 200 NX

The Carilex VT • 200 NX offers continuous and intermittent modes with a double lumen design. Its intuitive interface for selecting pressure settings effectively removes excess exudate and fluid, optimizing wound care management.

Carilex Medical USA, Inc.

 With over 30 years of experience, Carilex has established itself as a global leader in the wound care industry by developing state-of the-art technology in the prevention and treatment of pressure ulcers.
Toll free:(866) 551-4227 Website: www.carilexmedical.com
Benefits

• Continuous therapy
• Intermittent therapy
• Battery backup
• Up to 24 hours battery operation time
• Lightweight power unit
• IP22 rating protection
• Double Lumen

Indications

VT • 200 NX is indicated for use on patients with traumatic wounds, dehisced wounds, partial thickness burns, chronic wounds such as pressure ulcers, diabetic foot ulcers, venous leg ulcers, acute wounds, flaps, and grafts.

Contraindications

VT • 200 NX is contraindicated in patients with the following conditions:
1. Presence of necrotic tissue
2. Malignancy (except for quality of life reason for terminal patients)
3. Exposed arteries, veins, nerves, organs or vascular graft
4. Use over anastomotic sites
5. Untreated osteomyelitis
6. Unexplored or non-enteric fistulas

Warnings and Precautions

1. Precautions should be taken for patients with the following conditions:
2. Difficult wound hemostasis, or who are on anticoagulants
3. Exposed tendon, nerves or blood vessels should be protected
4. Weakened, irradiated or sutured blood vessels or organs
5. Bone fragments or sharp edges
6. Infected wound
7. For patients a known history of autonomic dysreflexia, please increase number of monitoring during the treatment as well as inspection for displacement of dressings.
8. Do not use NPWT if person experiences autonomic dysreflexia
9. For complete indication for use, please refer to the VT • 200 NX user’s manual. Do not operate this product before reading the manual thoroughly

Product features
check_circle Accommodates large wounds
check_circle Accommodates small wounds
check_circle Adjustable PSI
cancel Antimicrobial interface available
check_circle Battery-operated
cancel Disposable
check_circle Foam interface
cancel Gauze interface
cancel Instillation function
check_circle Intermittent-pressure setting
cancel Irrigation function
cancel Portable (under 1lb)
cancel Single-use: 10 days
cancel Single-use: 15 days
cancel Single-use: 30 days
cancel Single-use: 7 days
cancel Touchscreen
cancel Usable on closed wounds
check_circle Usable on open wounds
check_circle Variable pressure setting
Other features
check_circle Educational Material Available
check_circle Free Samples/Trials Available
cancel Published Clinical Article Available
Recommended Use

Acute Wounds
Burns
Cavity Wounds
Chronic Wounds
Deep Wounds
Dehisced Wounds
Diabetic Foot
Granulating/Epithelializing Wounds
Hypertrophic Scars/Keloids
Infected Wounds
Moderate/Highly Exudating Wounds
Non/Minimally Exudating Wounds
Sloughy Wounds
Surgical Wounds
Traumatic Wounuds

Warranty

1 year

Technical Specifications

Dimension (L x W x H): 180 x 90 x 179mm
Weight (Without Canister): 1.13kg (2.49lb)
Therapy Mode: Continuous/Intermittent
Continuous mode Pressure Range: -30 ~ -200 mmHg
Intermittent mode Pressure Range:
High: -50 ~ -200mmHg
Low: -20 ~ -80mmHg
Suction Volume: 4L/min
Canister Volume: 300, 500, 1000mL
Dressing Size: S, M, L, XL
Battery Duration: 24hr
IP Rate: IP22
Operating Conditions
Temperature Range: 5°C to 35°C
Relative Humidity Range: 15% to 90%
Storage/Transport Conditions:
Temperature Range: -25°C to 70°C
Relative Humidity Range: 0% to 90%
